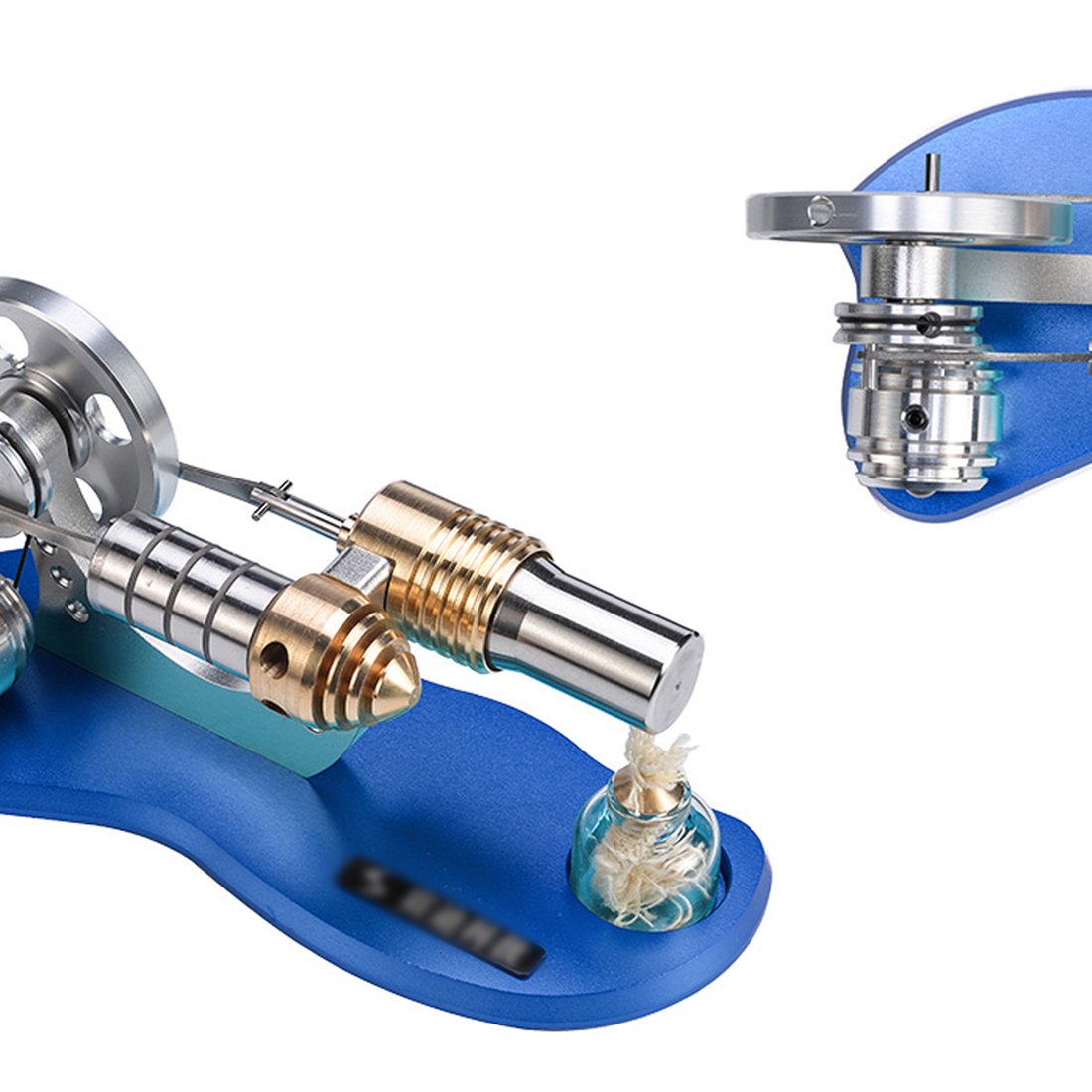

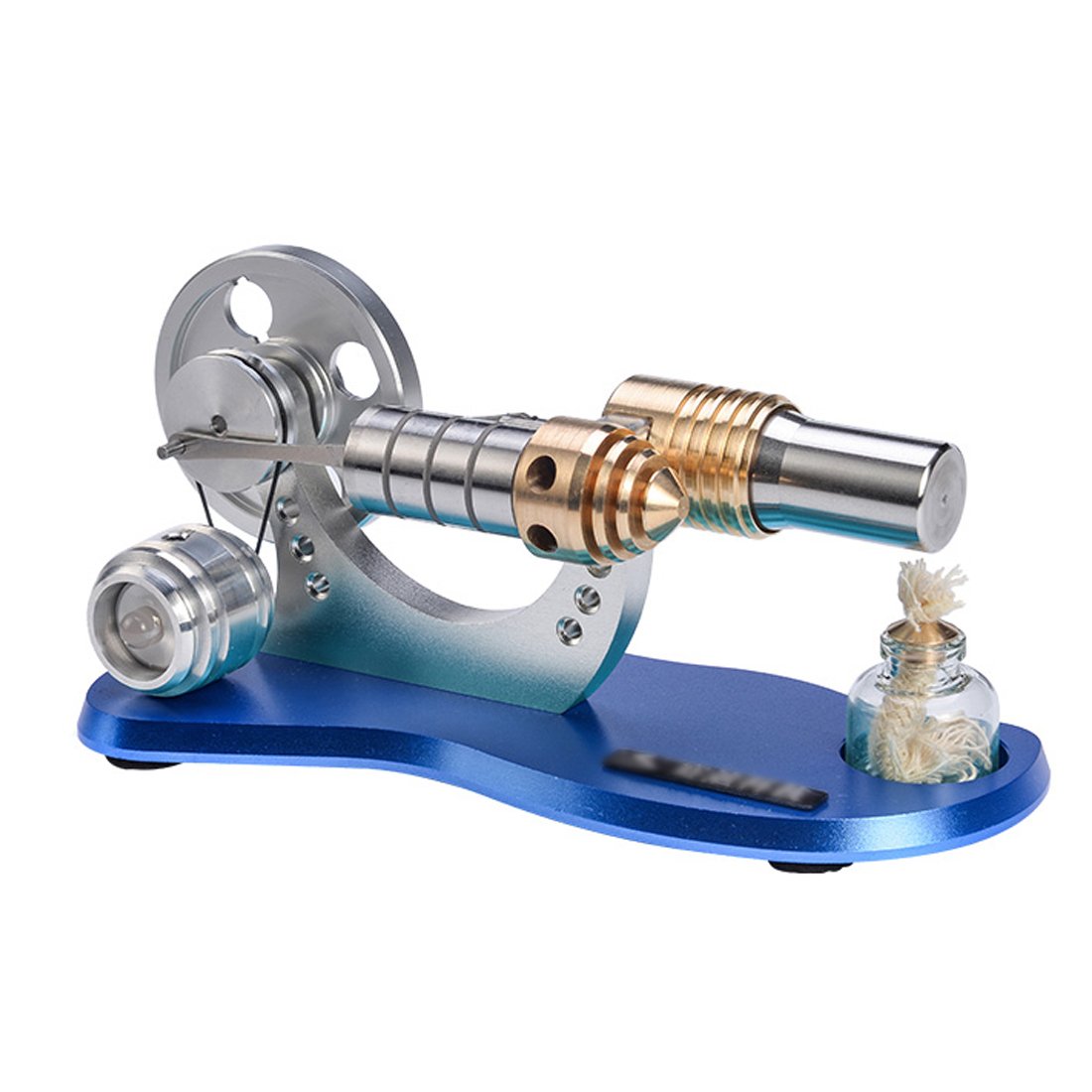

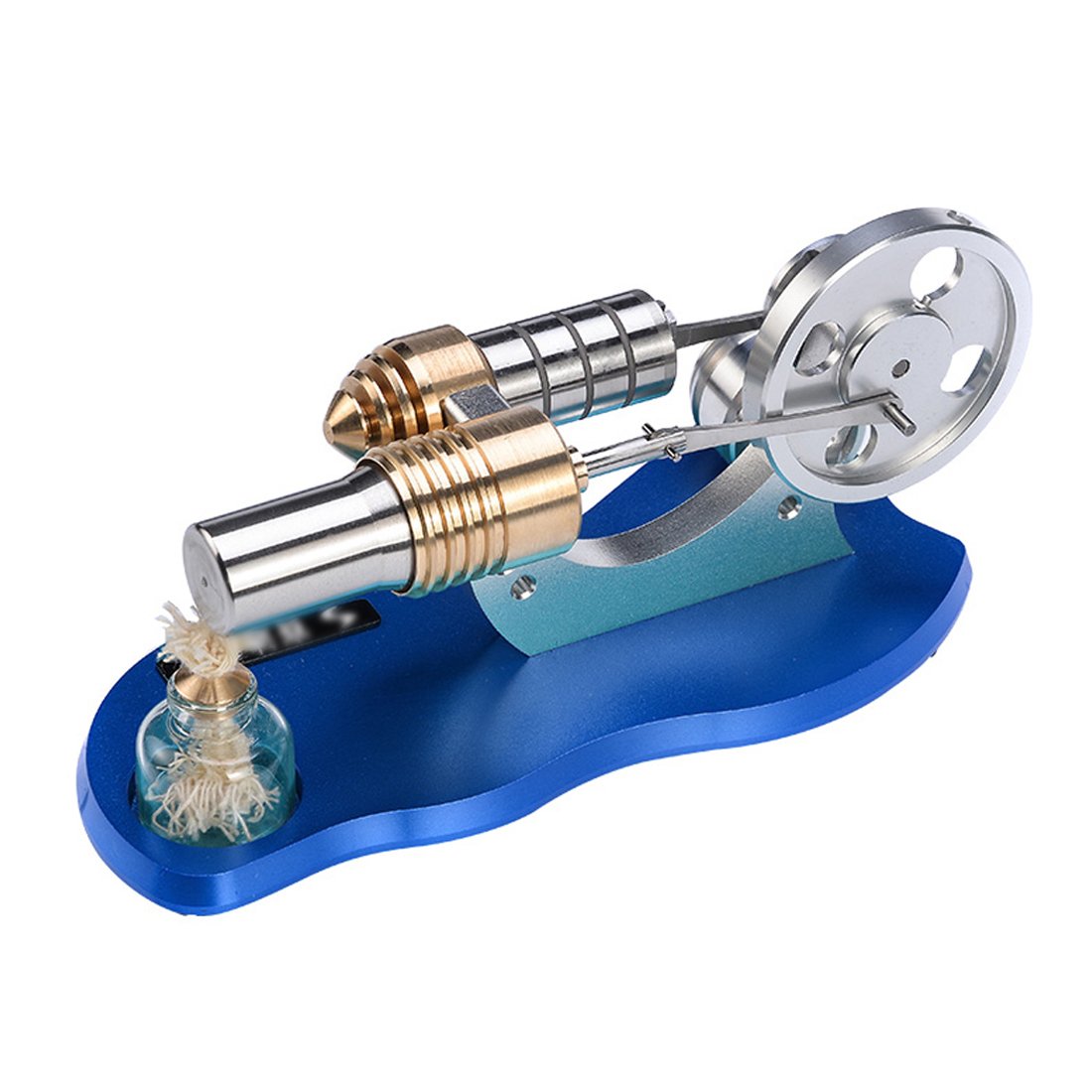

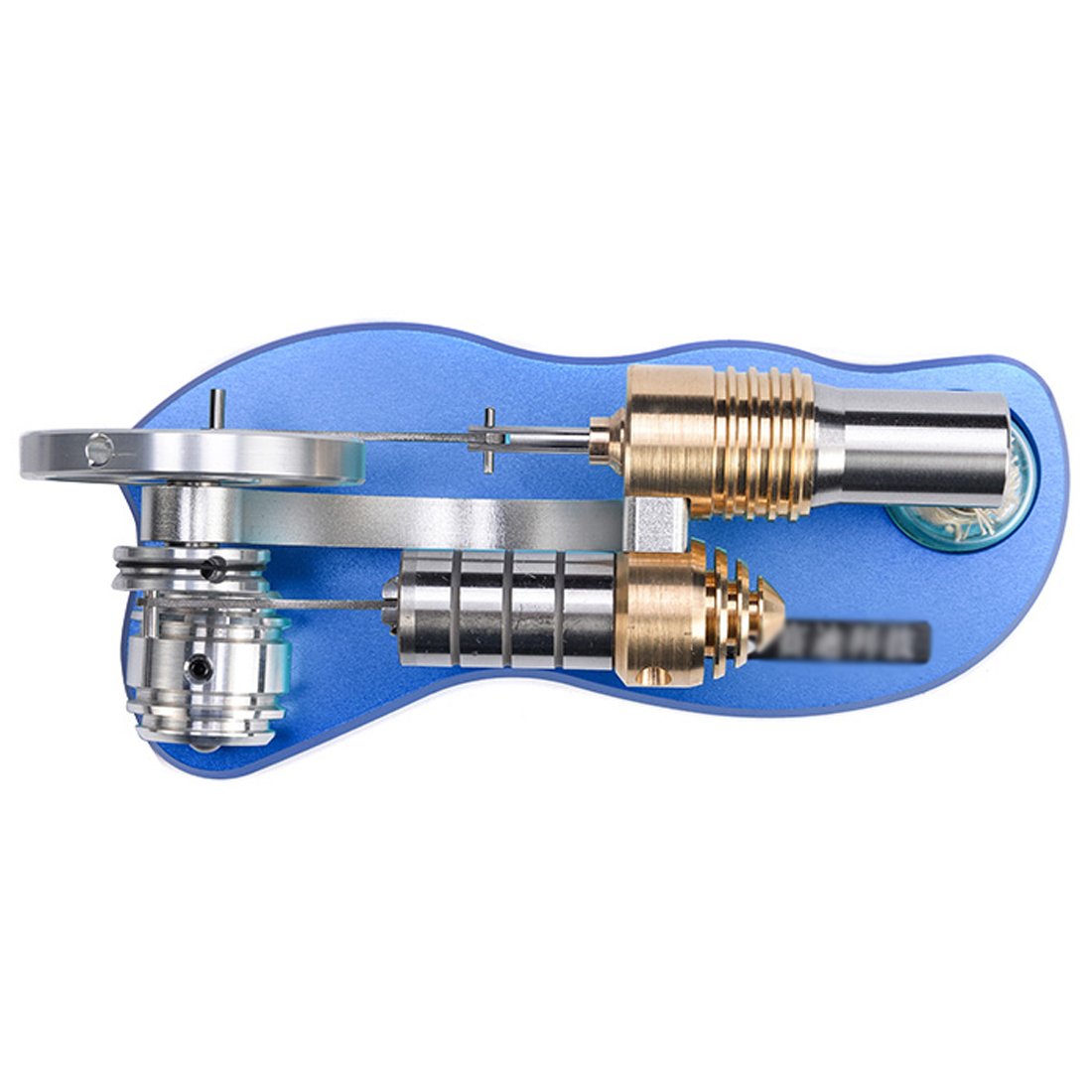

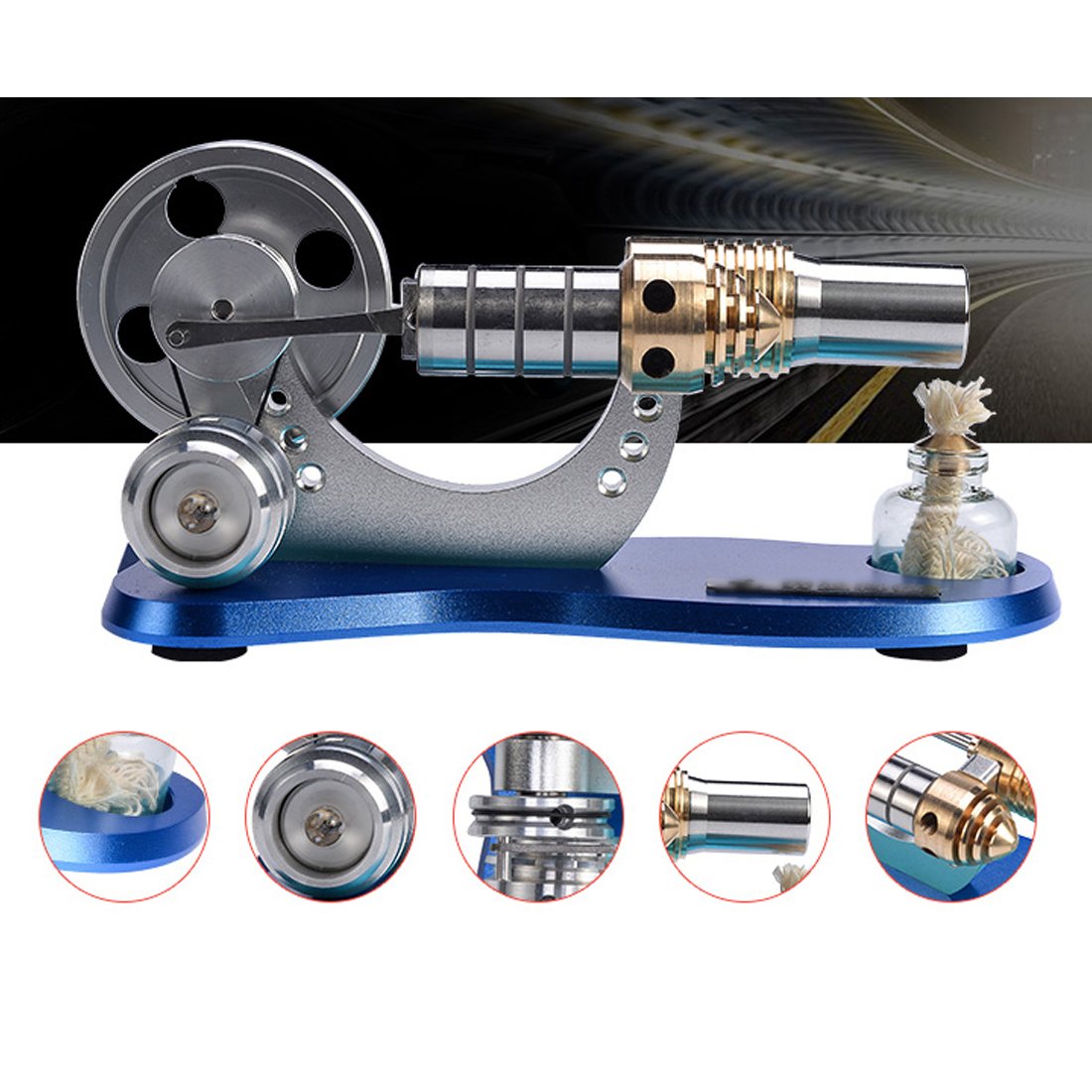

Metal Stirling Engine Electricity Generator Model with Alcohol Burner and LED Education Toy

Metal Stirling Engine Electricity Generator Model with Alcohol Burner and LED Education Toy

常规价格 $86.00 USD
常规价格 促销价 $86.00 USD
促销 售罄
结账时计算的运费

The Stirling Engine Generator Model is an engaging and educational toy that demonstrates the principles of thermodynamics and mechanical engineering. Using heat from an alcohol lamp, this model generates electricity to power colorful LED lights, making it a captivating tool for learning and exploration. It serves as a great gift for friends, kids, and students, sparking curiosity and creativity.

Features:

Stirling Engine Generator with Attractive Colorful LED: The engine generates a power voltage of 4-9V, causing the LED lights to flicker wildly as the flywheel rotates faster. This visual effect is both shocking and eye-catching.

Extremely Well-Made: The base, bracket, and flywheels are crafted from 6061 aluminum alloy, known for its high strength, weldability, and corrosion resistance. The power cylinder and piston are made from SUJ2 material with a fine grinding surface, ensuring high hardness and durability without wear during high-speed, long-term operation. Axle joints use high-precision miniature bearings for stability without lubrication. The power and heat cylinders are made from brass and 304 stainless steel for a long service life.

Easy Operation & Long Lasting: Fill the alcohol burner with 95% alcohol, light it, and heat the cylinder for about 20 seconds. A gentle push on the wheel will start the engine, which can run continuously for over 8 hours without any issues.

Priority Gift Option for Many Applications: This product, with its elegant gift packaging, is perfect for a wide range of applications, including science projects, physical/mechanical learning, teacher demonstrations, and as a birthday gift for friends, families, and kids.

Instructions:
-The engine model on the horizontal position by hand toggle the flywheel to see if smooth, if there is a strong sense of raw astringent, check the connection rod is normal, whether the cylinder oil and dust, and if so, please use toilet paper to erase Not smooth. Toggle the flywheel feel pressure rebound within the cylinder body is a normal phenomenon, the cylinder is sealed.
-Please go to the pharmacy to buy 95% purity alcohol, anhydrous industrial alcohol better. Fill the alcohol lamp to less than two-thirds.
-Alcohol lamp to the alcohol lamp, at the premise of ensuring safety, ignite the alcohol lamp about 20 seconds after the flywheel, until the flywheel automatic operation so far, the whole process of heating, hands may not touch.

Tips:
1, After using it, please let the engine natural cool. Don't touch the alchohol burner, burned tube or the metal to avoid scald.
2, 95% alcohol (self-prepared) should be used in the operation. Water, kerosene, gasoline, lighter oil, and liquor should not be added.
3, The Stirling engine model is suit for people over 14 years old. Operate under adults' supervision.

Specifications:

Item Name: Stirling Engine with Generator
Status: Assembled
Speed: 1300-1500 RPM(revolutions per minute)
Material: Alloy Steel + Aluminium Alloy
Model Size: 198*97*91mm
Power Generation Voltage: 4-9v
Packing: Carton Box

Package Content:
1 x Stirling Engine Model with LED
1 x Alcohol Lamp
